MAX9618AXA+T 1.5MHz Operational Amplifiers With RRIO

MAX9618AXA+T Operational Amplifiers - Op Amps High-Efficiency, 1.5MHz Op Amps With RRIO

1.General Description

The MAX9617–MAX9620 are low-power, zero-drift oper-ational amplifiers available in space-saving SC70 pack-ages. They are designed for use in portable consumer, medical, and industrial applications.
The MAX9617–MAX9620 feature rail-to-rail CMOS inputs and outputs, a 1.5MHz GBW at just 59FA supply current and 10FV (max) zero-drift input offset voltage over time and temperature. The zero-drift feature reduces the high 1/f noise typically found in CMOS input operational ampli-fiers, making it useful for a wide variety of low-frequency measurement applications.
The MAX9617 and MAX9619 are available in a space-saving, 2mm x 2mm, 6-pin SC70 package. The MAX9619 features a power-saving shutdown mode. The MAX9618 is available in a 2mm x 2mm, 8-pin SC70 package. The MAX9620 is available in a 2mm x 2mm, 5-pin SC70 package. All devices are specified over the -40NC to +125NC automotive operating temperature range

2.Benefits and Features

Extends Battery Life
• Low 59μA Quiescent Current
• Single 1.8V to 5.5V Supply Voltage Range
• Power-Saving Shutdown Mode (MAX9619)
Supports a Wide Range of Precision Applications
• Very Low 10μV (max) Input Offset Voltage
• Ultra-Low 10pA Input Bias Current
• 1.5MHz GBW
• Unity-Gain Stable
• 0.42μVP-P from 0.1Hz to 10Hz
42nV/√Hz at 1kHz
Rail-to-Rail Inputs and Outputs
Saves Board Space
• 5-Pin SC70 (MAX9620), 6-Pin SC70 (MAX9617/MAX9619), and 8-Pin SC70 (MAX9618) Packages

3.Applications

Sensor Interfaces
Loop-Powered Systems
Portable Medical Devices
Battery-Powered Devices
Cardiac Monitors

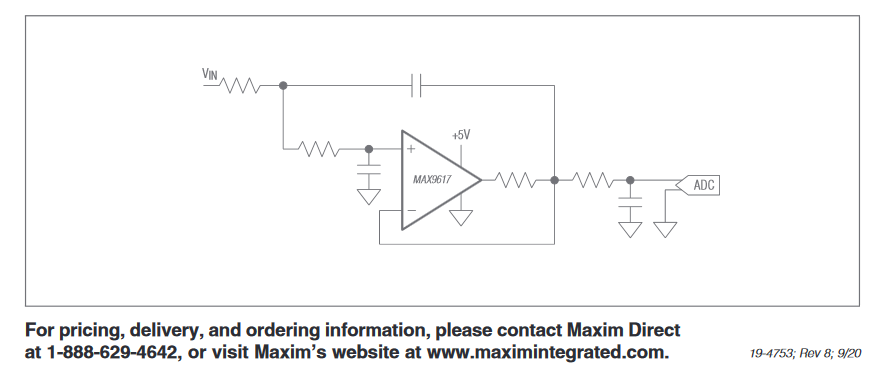

4.Block Diagram
