AX88796BLI High-Performance Non-PCI Single-Chip 8/16-bit 10/100M Fast Ethernet Controller
1.Features
High-performance non-PCI local bus
Support both 8 bit and 16 bit local CPU interfaces include MCS-51 series, 80186 series CPU and ISA bus
SRAM-like host interface, easily interfaced to most common embedded MCUs
Embed 8Kx16 bits SRAM for packet buffers
Support Slave-DMA to minimize CPU overhead
Support burst-mode read for highest performance applications Interrupt pin with programmable Hold-off timer
Single-chip Fast Ethernet controller
Compatible with IEEE802.3, 802.3u standards
Integrate Fast Ethernet MAC/PHY transceiver in one chip
Support 10Mbps and 100Mbps data rate
Support full and half duplex operations
Support 10/100Mbps N-way Auto-negotiation operation Support twisted pair crossover detection and auto-correction (HP Auto-MDIX)
Support IEEE 802.3x flow control for full-duplex operation
2.Support back-pressure flow control for half-duplex operation Support Wake-on-LAN function to reduce power by following events
Detection of a change in the network link state
Receipt of a Magic Packet
Receipt of a MS wakeup frame
NE2000 register level compatible instruction
Detection performance can be enhanced with only a minor host driver modification from original NE2000 driver
Support EEPROM interface to store MAC address(Optional) Support up to 2 (out) /1 (in/out) General Purpose pins
Support LED pins for various network activity indications Integrate voltage regulator and 25MHz crystal oscillator 0.18um CMOS process. 3.3V power supply with 5V I/O tolerance 64-pin LQFP , RoHS package
Operate over 0 to +70 °C or -40 to +85 °C temperature range
3.Product description
The AX88796B is a low-pin-count (64-pin LQFP) non-PCI Ethernet controller for the Embedded and Industrial Ethernet applications. The AX88796B supports 8/16-bit SRAM-like host interface, providing a glue-less connection to most common embedded MCUs. The AX88796B integrates on-chip Fast Ethernet MAC and PHY, which is IEEE802.3 10Base-T and IEEE802.3u 100Base-TX compatible, and 8Kx16 bits embedded SRAM for packet buffering to accommodate high bandwidth applications. The AX88796B has a wide array of features including support for Twisted Pair Crossover Detection and Auto-Correction, Wake-on-LAN power management, and IEEE 802.3x and back-pressure flow control. The AX88796B supports two operating temperature ranges, namely, commercial grade from 0 to 70 °C and industrial grade from –40 to 85 °C. The small form factor of 64-pin LQFP package helps reduce the overall PCB space. The programming of AX88796B is simple and compatible with NE2000, so the users don’t need any modification and can easily port the software drivers to many embedded systems very quickly. Combining these features with ASIX’s free TCP/IP software stack for 8-bit microcontrollers, AX88796B provides the best Ethernet solution for embedded networking applications.
4. The AX88796B is housed in the 64-pin plastic light quad flat pack.

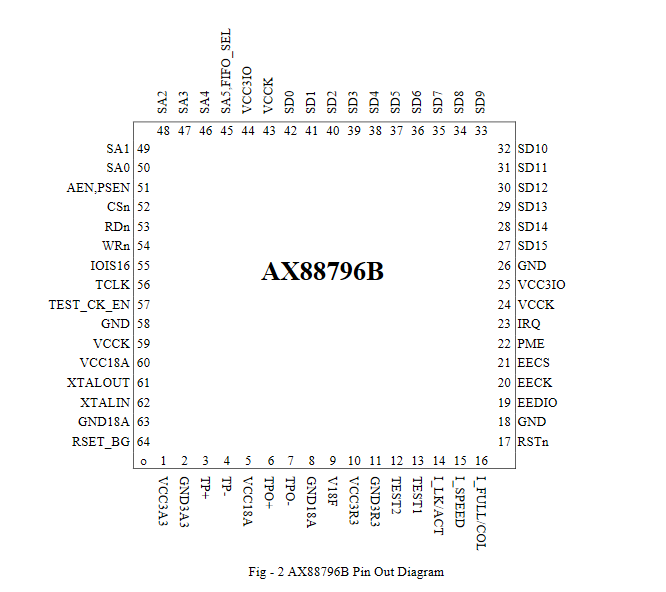

Fig - 2 shows the AX88796B pin connection diagram.
