LM339ADR Texas Instruments Analog Comparators 4 Channel 100% Original

Product Categories
Shenzhen Hongxinwei Technology Co., Ltd
Contact Now

LM339ADR Texas Instruments Analog Comparators 4 Channel 100% Original

  • 1
  • 2
  • 3

Brand Name : Texas Instruments

Model Number : LM339ADR

Certification : ROHS

Place of Origin : Mexico

MOQ : 10PCS

Price : NEGOTIABLE

Payment Terms : T/T, Western Union

Supply Ability : 12500PCS/WEEK

Delivery Time : 2-3DAYS

Packaging Details : 2500PC/REEL

Product Category : Analog Comparators

Number of Channels : 4 Channel

Output Type : Rail-to-Rail

Response Time : 300 ns

Comparator Type : Differentia

Supply Voltage - Min : 2 V

Supply Voltage - Max : 30 V

Operating Supply Current : 500 uA

Output Current per Channel : 6 mA

Vos - Input Offset Voltage : 2 mV

Ib - Input Bias Current : 50 nA

Minimum Operating Temperature : 0 C

Maximum Operating Temperature : + 70 C

Features : Standard comparator

Height : 1.58 mm

Length : 8.65 mm

Product : Analog Comparators

Supply Type : Single, Dual

Technology : Bipolar

Type : Differential Comparator

Width : 3.91 mm

Shutdown : No Shutdown

Dual Supply Voltage : +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V

Ios - Input Offset Current : 50 nA

Maximum Dual Supply Voltage : +/- 15 V

Minimum Dual Supply Voltage : 1 V

Operating Supply Voltage : 2 V to 30 V

Product Type : Analog Comparator

Voltage Gain dB : 106.02 dB

Factory Pack Quantit : 2500

Contact Now

LM339ADR Texas Instruments Analog Comparators 100% Original​ Analog Comparators Quad Diff A Grade

1.Features
1• Wide Supply Ranges
– Single Supply: 2 V to 36 V
(Tested to 30 V for Non-V Devices and
32 V for V-Suffix Devices)
– Dual Supplies: ±1 V to ±18 V
(Tested to ±15 V for Non-V Devices and
±16 V for V-Suffix Devices)
• Low Supply-Current Drain Independent of
Supply Voltage: 0.8 mA (Typical)
• Low Input Bias Current: 25 nA (Typical)
• Low Input Offset Current: 3 nA (Typical) (LM139)
• Low Input Offset Voltage: 2 mV (Typical)
• Common-Mode Input Voltage Range
Includes Ground
• Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36 V
• Low Output Saturation Voltage
• Output Compatible With TTL, MOS, and CMOS
• On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise
Noted. On All Other Products, Production
Processing Does Not Necessarily Include Testing
of All Parameters

2.Applications
• Industrial
• Automotive
– Infotainment and Clusters
– Body Control Modules
• Power Supervision
• Oscillators
• Peak Detectors
• Logic Voltage Translation

3.Description
The LMx39x and the LM2901x devices consist of four
independent voltage comparators that are designed
to operate from a single power supply over a wide
range of voltages. Operation from dual supplies also
is possible, as long as the difference between the two
supplies is 2 V to 36 V, and VCC is at least 1.5 V
more positive than the input common-mode voltage.
Current drain is independent of the supply voltage.
The outputs can be connected to other open-collector
outputs to achieve wired-AND relationships.
The LM139 and LM139A devices are characterized
for operation over the full military temperature range
of –55°C to +125°C. The LM239 and LM239A
devices are characterized for operation from –25°C to
+85°C. The LM339 and LM339A devices are
characterized for operation from 0°C to 70°C. The
LM2901, LM2901AV, and LM2901V devices are
characterized for operation from –40°C to +125°C.

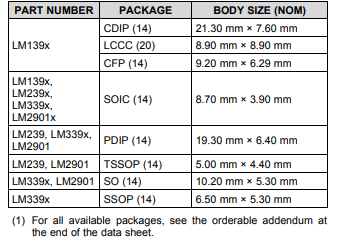

4.Device Information(1)

LM339ADR Texas Instruments Analog Comparators 4 Channel 100% Original

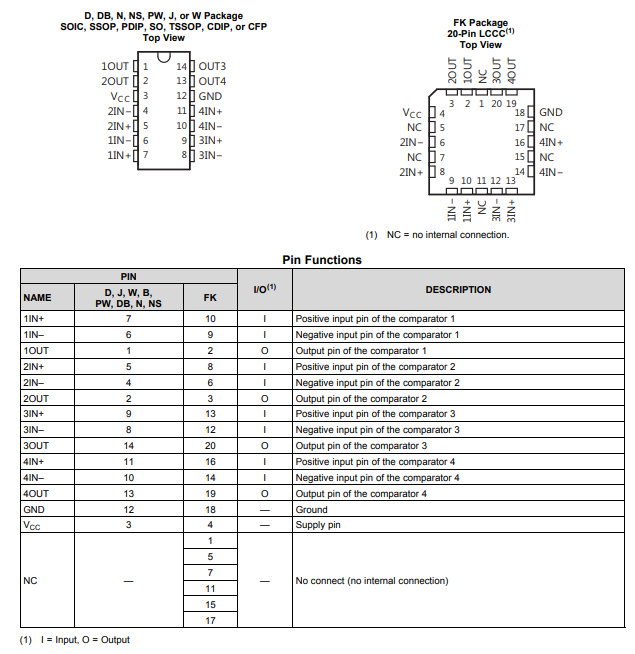

5.Pin Configuration and Functions

LM339ADR Texas Instruments Analog Comparators 4 Channel 100% Original
