Texas Instruments TL431CPK Reference voltage Adj Shunt ADJUSTABLE PRECISION SHUNT REGULATOR
Product Specification
Features • 5 ns pin-to-pin logic delays • System frequency up to 178 MHz • 144 macrocells with 3,200 usable gates • Available in small footprint packages - 100-pin TQFP (81 user I/O pins) - 144-pin TQFP (117 user I/O pins) - 144-CSP (117 user I/O pins) - Pb-free available for all packages • Optimized for high-performance 3.3V systems - Low power operation - 5V tolerant I/O pins accept 5V, 3.3V, and 2.5V signals - 3.3V or 2.5V output capability - Advanced 0.35 micron feature size CMOS Fast FLASH™ technology • Advanced system features - In-system programmable - Superior pin-locking and routability with Fast CONNECT™ II switch matrix - Extra wide 54-input Function Blocks - Up to 90 product-terms per macrocell with individual product-term allocation - Local clock inversion with three global and one product-term clocks - Individual output enable per output pin with local inversion - Input hysteresis on all user and boundary-scan pin inputs - Bus-hold circuitry on all user pin inputs - Full IEEE Standard 1149.1 boundary-scan (JTAG) • Fast concurrent programming • Slew rate control on individual outputs • Enhanced data security features • Excellent quality and reliability - Endurance exceeding 10,000 program/erase cycles - 20 year data retention - ESD protection exceeding 2,000V • Pin-compatible with 5V-core XC95144 device in the 100-pin TQFP package WARNING: Programming temperature range of TA = 0° C to +70° C
Description

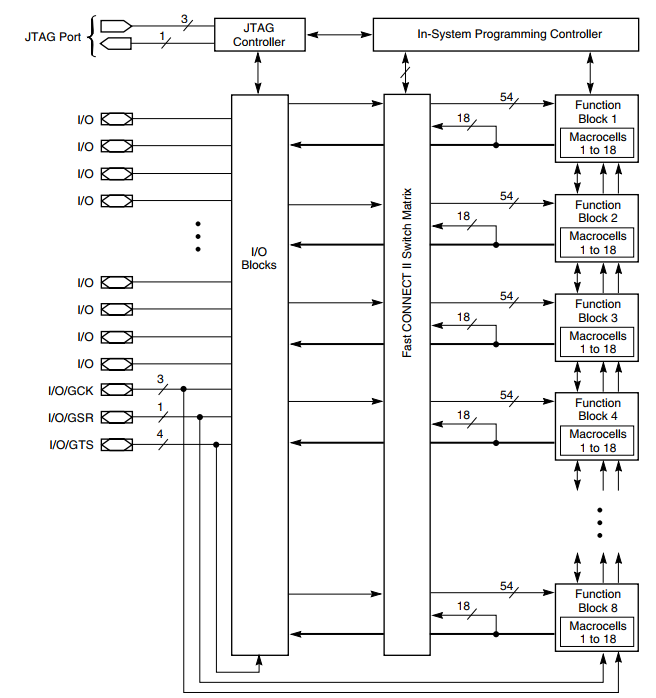

The XC95144XL is a 3.3V CPLD targeted for high-performance,
low-voltage applications in leading-edge communications
and computing systems. It is comprised of eight54V18 Function Blocks, providing 3,200 usable gates with
propagation delays of 5 ns.
Power Estimation
Power dissipation in CPLDs can vary substantially depending
on the system frequency, design application and output
loading. To help reduce power dissipation, each macrocell
in a XC9500XL device may be configured for low-power
mode (from the default high-performance mode). In addition,
unused product-terms and macrocells are automatically
deactivated by the software to further conserve power.
For a general estimate of ICC, the following equation may be
used:
ICC(mA) = MCHS(0.175*PTHS + 0.345) + MCLP(0.052*PTLP
+ 0.272) + 0.04 * MCTOG(MCHS +MCLP)* f
where:
MCHS = # macrocells in high-speed configuration
PTHS = average number of high-speed product terms
per macrocell
MCLP = # macrocells in low power configuration
PTLP = average number of low power product terms per
macrocell
f = maximum clock frequency
MCTOG = average % of flip-flops toggling per clock
(~12%)
This calculation was derived from laboratory measurements
of an XC9500XL part filled with 16-bit counters and allowing
a single output (the LSB) to be enabled. The actual ICC
value varies with the design application and should be verified

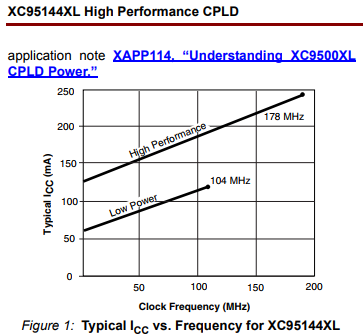

during normal system operation. Figure 1 shows the
above estimation in a graphical form. For a more detailed
discussion of power consumption in this device,
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order!
Q3. Do you test or check all your goods before delivery?
A: Yes, we have 100% test and check all goods before delivery.
Q4: How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.
Q5: How to contact us?
A: Send your inquiry details in the below,Click "Send"Now!!!
Shenzhen Hongxinwei Technology Co., Ltd
To adopt new technology,to produce products of quality,to offer high-class service.
Improve the management system continuously to meet customer requirement for high-quality products and services.
Why choose us?
- 100% new and originao with Advantage price
- High efficiency
- Fast Delivery
- Professional team service
- 10 Years Experience Electronic components
- Electronic components Agent
- Advantage logistic discount
- Excellent After-sales Service
Product Tags:
|
|
XC95144XL-10TQG100C CPLD Complex Programmable Logic Device Images
|
