2N7002KQ-7 Motor Control Power Management Functions Backlighting

1.Description and Applications

This MOSFET is designed to meet the stringent requirements of automotive applications.
It is AEC-Q101 qualified,
Supported by PPAP,
Ideal for:
motor control
Power Management Features
Backlight

2.Features and Benefits

Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
ESD Protected Up To 2kV
Totally Lead-Free & Fully RoHS Compliant(Notes1& 2)
Halogen and Antimony Free. “Green” Device (Note3)
The 2N7002KQissuitable for automotive applications requiring specific change control; this part is AEC-Q101qualified, PPAP capable, and manufactured in IATF 16949 certified facilitie

3.Mechanical Data

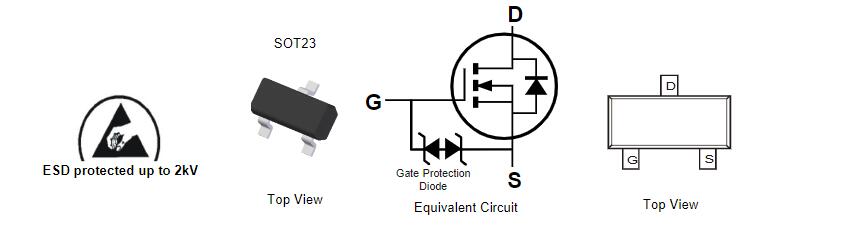

Case: SOT23
Case Material: Molded Plastic, “Green” MoldingCompound. UL Flammability Classification Rating94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish
Matte Tin Annealed over Alloy 42 Leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.008 grams (Approximate)
